MAX POWER FRICTION AIR DISC BRAKE PADS IMAGES & DRAWINGS
D1203
D1310
D1311

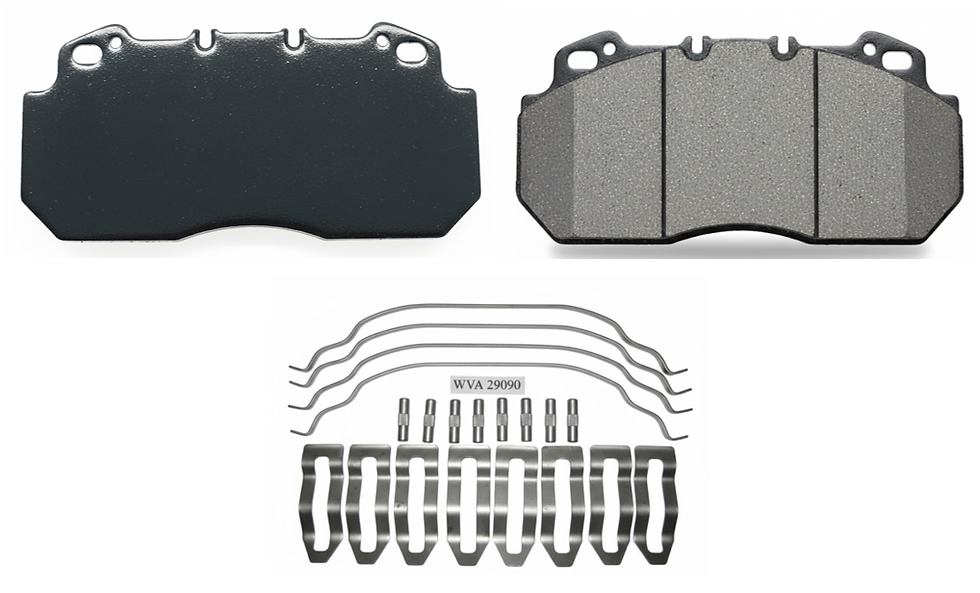

D1312
D1323
D1369 7mm

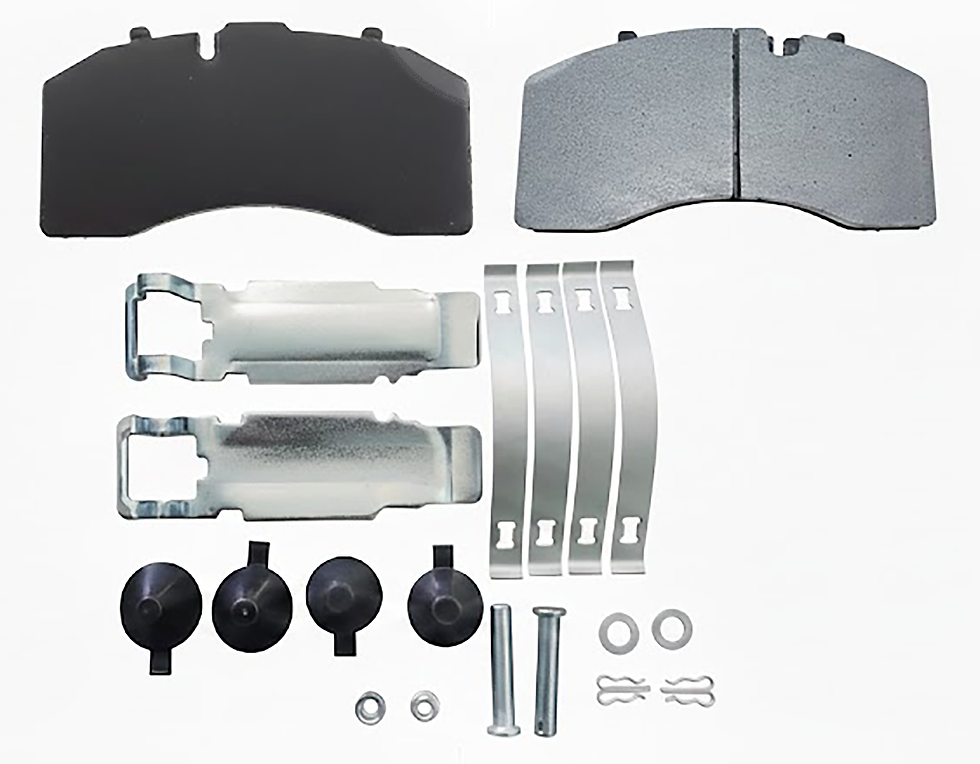

D1369 9mm
D1370
D1407
D1438
D1518
D1560
D1583
D1708
D1777
D2061 (D1777A)
D2252 (P89)
D2421 (D1370L)
D2526 (D1370N)
AIR DISC BRAKE PAD CROSS REFERENCE GUIDE
FMSI # | WVA | Caliper Make | Caliper Model | MPF Part # - 23K LBS AXLE LOAD, HEAVY DUTY | MPF Part # - 26K LBS AXLE LOAD, SEVERE DUTY | Note |
|---|---|---|---|---|---|---|
8323-D1203 | 29087 / 29105 / 29106 / 29108 / 29109 / 29163 / 29179 / 29201 / 29202 / 29275 | KNORR BREMSE | SB7, SN7 | MPD1203-S3K | MPD1203-S6K | |
8425-D1310 | 29131/29156 | Meritor | Lucas Elsa 2 | MPD1310-S3K | MPD1310-S6K | |
8426-D1311 | 29187 | Meritor | EX225 H2, EX+ | MPD1311-S3K | MPD1311-S6K | |
8427-D1312 | 29090 | Meritor | D-Lisa | MPD1312-S3K | MPD1312-S6K | |
8435-D1323 | 29188 | Meritor | Ex225, H3 Transit | MPD1323-S3K | MPD1323-S6K | |
8479-D1369 | 29158 | KNORR BREMSE | ADB22X, SK7 | MPD1369-S3K | MPD1369-S6K | Backing Plate Thickness: 9mm |
8479-D1369 | 29158 | KNORR BREMSE | ADB22X, SK7 | MPD1369A-S3K | MPD1369A-S6K | Backing Plate Thickness: 7mm |
8480-D1370 | 29189 | Meritor | EX225 L2 | MPD1370-S3K | MPD1370-S6K | |
8515-D1407 | 29030 / 29083 / 29113 | Meritor | D-Elsa 1 | MPD1407-S3K | MPD1407-S6K | |
8556-D1438 | 29126 / 29159 | Wabco | Pan 19-1 | MPD1438-S3K | MPD1438-S6K | |
8727-D1518 | 29088 | Wabco | Pan 17 | MPD1518-S3K | MPD1518-S6K | |
8771-D1560 | 29125 / 29222 / 29224 / 29227 | Meritor | D DUCO | MPD1560-S3K | MPD1560-S6K | |
8795-D1583 | 29175 / 29195 / 29198 / 291274 | Haldex | DB22LT | MPD1583-S3K | MPD1583-S6K | Two hardware kit options available, A & B |
9007-D1777 | 29162 | Wabco | Pan 22T, Pan22, Pan 22-1 | MPD1777-S3K | MPD1777-S6K | |
8931-D1708 | 29174 / 29219 / 29204 / 29218 / 29226 | Meritor | Elsa 225-3 | MPD1708-S3K | MPD1708-S6K | |
9294-D2061 | 29279 | Wabco | MAXXUS 22, MAXX 22LT | MPD1777A-S3K | MPD1777A-S6K | |
9490-D2252 | 29244 | SAF Holland | P89, P89+ | MPD2252-S3K | MPD2252-S6K | |
9645-D2421 | Meritor | EX225 L410 | MPD1370L-S3K | MPD1370L-S6K | ||
9757-D2526 | Meritor | EX225 LS | MPD1370N-S3K
| MPD1370N-S6K |
